Customizable Style

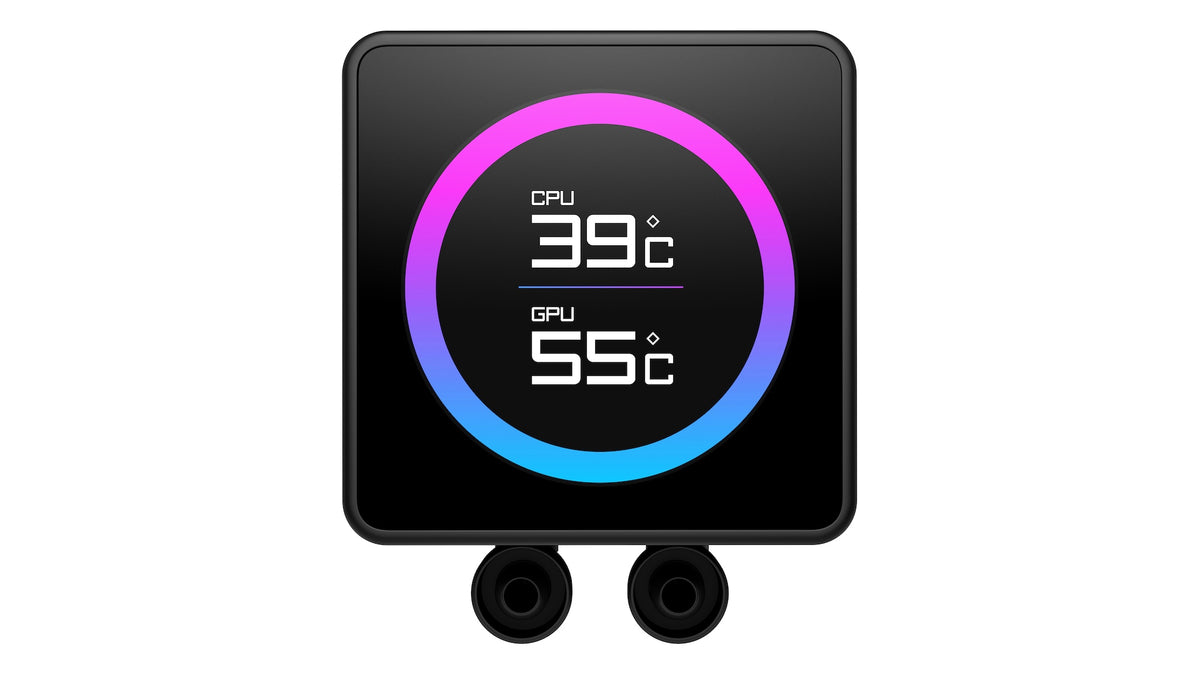

Express your style with a built-in 2.1” IPS LCD pump cap and fans with aRGB Gen 2 lighting for vibrant visuals and effects through OGH. Plus, the cap features built-in release buttons for easy installation.
Overview
xCooling that wins the game

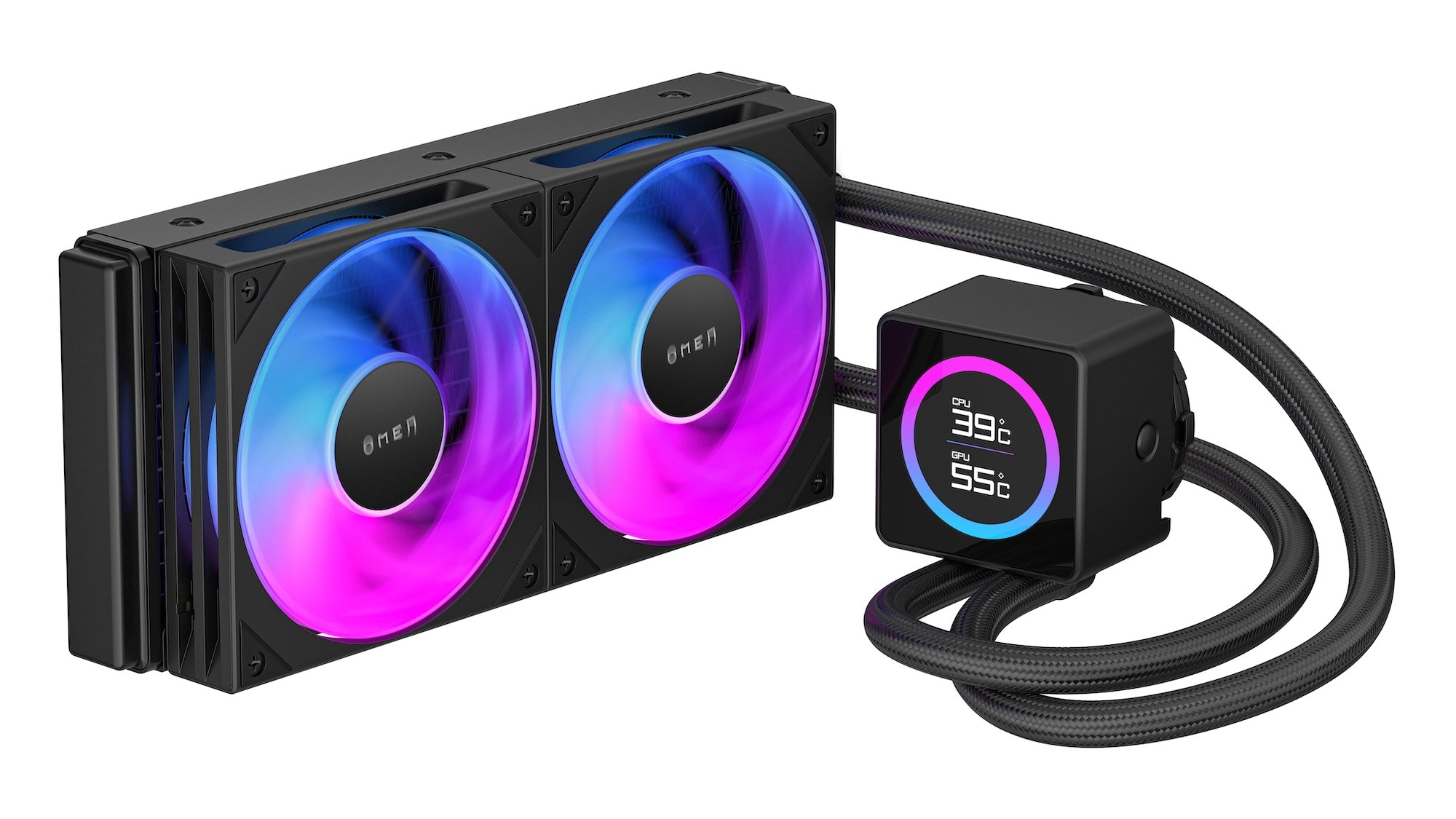

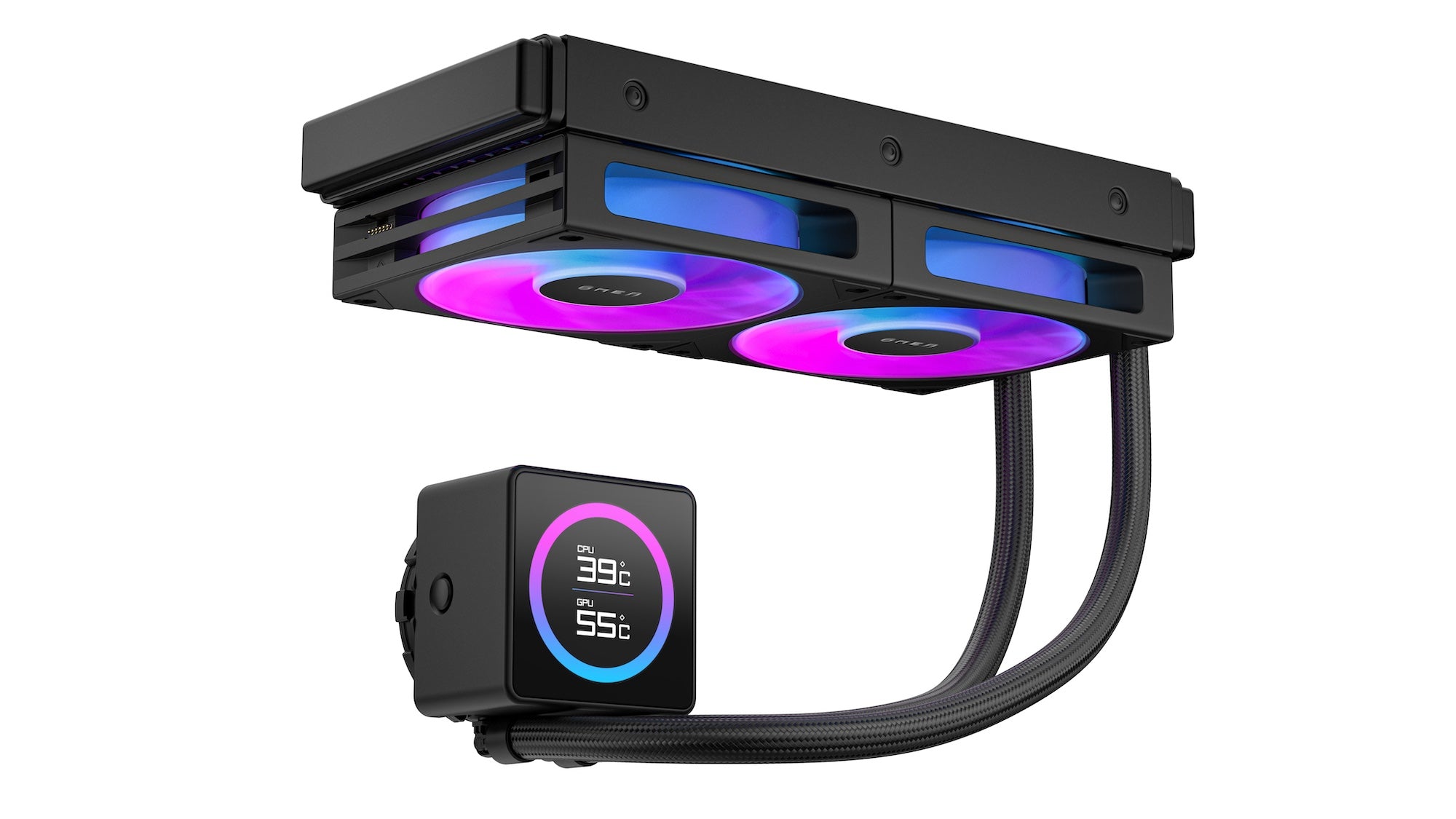

Upgrade your PC’s liquid cooling performance with the OMEN Modular 240 mm LCD Liquid Cooler, compatible with major processors and featuring Asetek’s 7th Gen pump for advanced cooling. Customize the built-in 2.1" IPS LCD pump cap and fans with aRGB Gen 2 lighting effects with OGH. Plus, connect up to 16 fans using the OMEN Modular Fan Hub minimizing cable clutter.
Cooling that delivers
Achieve powerful cooling with 28 mm thick fans generating 74 CFM airflow and 3.2 mm H2O static pressure, paired with Asetek’s 7th Gen pump and a high density aluminum radiator boosting thermal performance.
Eliminate cable clutter
Minimize cabling with the OMEN Modular Daisy Chain System. Connect up to 10 fans per daisy chain and 16 fans per OMEN Modular Hub.
Game without worries

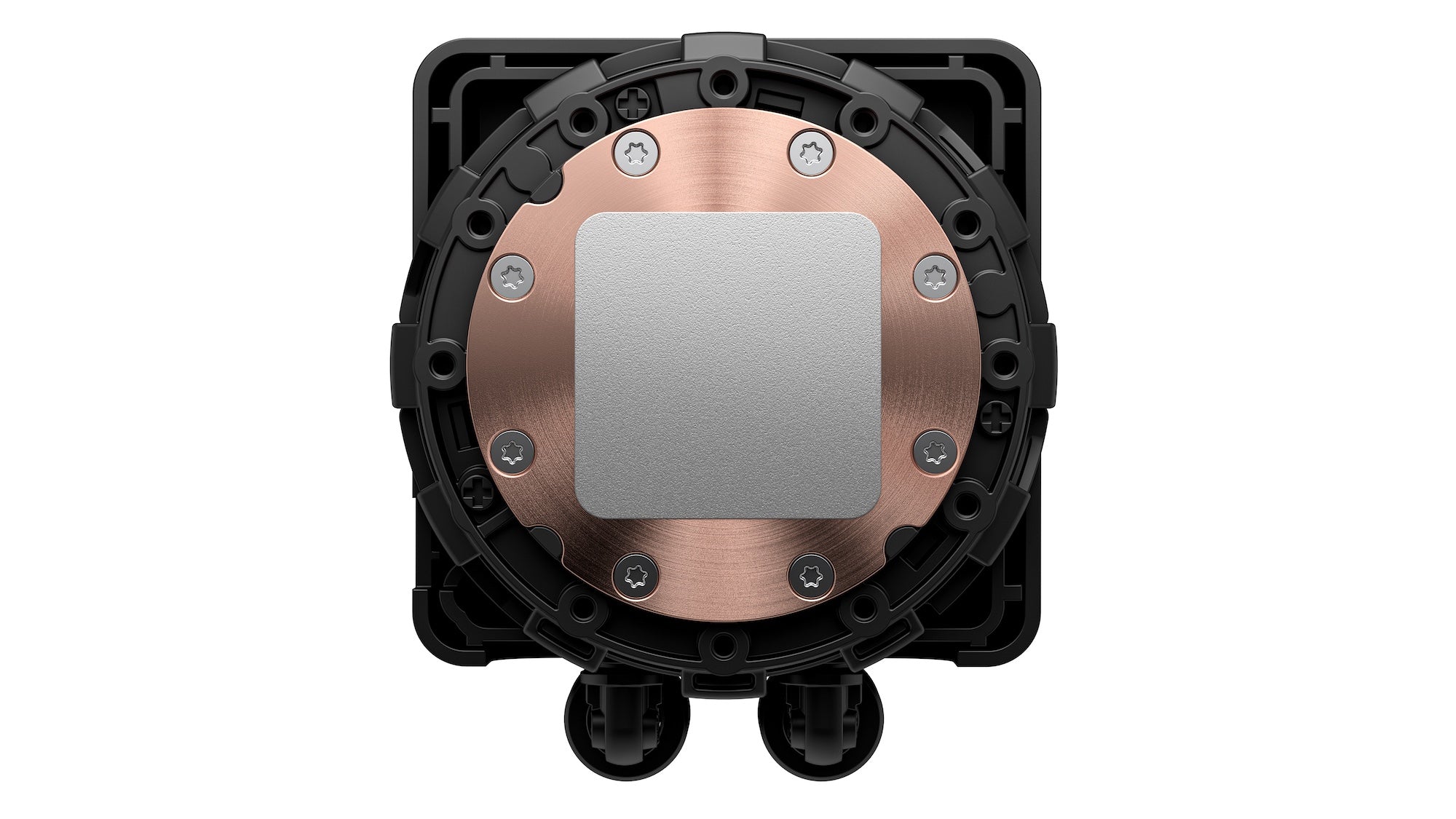

Enjoy pre-applied thermal paste for easy installation with a leak-proof Asetek pump and EPDM tubing protected by a durable braided sleeve ensuring long-lasting performance.
Technical Specifications
x| Spec Sheet | OMEN Modular 240mm LCD Liquid Cooler |
| What's in the box | 1 x 240mm Radiator with LCD Pump cap Liquid Cooler; 2 x OMEN Modular 120mm Fan; 1 x OMEN Modular Hub with PCIe power cable; 1 x Fan to Hub Bridge cable; 1 x USB Type-C® cable; 2 x Mounting tape; 1 x Connecting rod (pre-installed); 1 x Intel Retention bracket (pre-installed); Intel backplate; 4 x Intel socket standoff 1200/115X with thumbnuts; 4 x Intel socket standoff 1700/1851; AMD retention bracket; 4 x AMD standoff and dual sided sleeve; 8 x Fan screws, fan washers and radiator screws; Installation guide |
| Connector description | OMEN Modular Daisy Chain (up to 16 fans per hub; 10 fans per channel) |
| Lighting | 10 LEDs aRGB, 6-sided viewing |
| Weight | 1353 g |
| Package weight | 2113 g |
| Dimensions (W x D x H) | 120 x 120 x 28 mm (fan, 2 pcs.); 273 x 120 x 27 mm (radiator); 69 x 69 x 47 mm (pump block) |
| Package dimensions | 498 x 154 x 161.5 mm |
| Power consumption | 12V 0.4A DC |
| Management Software | OMEN Gaming Hub |
| Manufacturer Warranty | HP five-year limited warranty |
| Product safety | View Safety Document |
| Fan airflow (max) | 74 CFM |
| Fan bearing | Fluid Dynamic Bearing (FDB) |
| Compatible processor socket | Intel LGA 115X, 1200, 1700, 1851; AMD AM4, AM5 |
| Fan noise | 32 dBA @ 2400 RPM; 7 dBA @ 500 RPM; 0 dB @ zero RPM fan mode |
| Pump | Asetek Gen7 Solution |
| Pump cap type | 5.33 cm (2.1") IPS LCD display, 480 x 480 pixels, up to 650 nits, 24-bit color depth, 30 fps |
| Pump speed | Up to 2800 RPM |
| Fan speed range | 0 - 2400 RPM±10% (PWM controlled) |
| Static pressure | 3.2 mmH2O |
| Tube | EPDM rubber; 400 mm length |
What's In the Box
x1 x 240mm Radiator with LCD Pump cap Liquid Cooler; 2 x OMEN Modular 120mm Fan; 1 x OMEN Modular Hub with PCIe power cable; 1 x Fan to Hub Bridge cable; 1 x USB Type-C® cable; 2 x Mounting tape; 1 x Connecting rod (pre-installed); 1 x Intel Retention bracket (pre-installed); Intel backplate; 4 x Intel socket standoff 1200/115X with thumbnuts; 4 x Intel socket standoff 1700/1851; ADM retention bracket; 4 x AMD standoff and dual sided sleeve; 8 x Fan screws, fan washers and radiator screws; Installation guide
