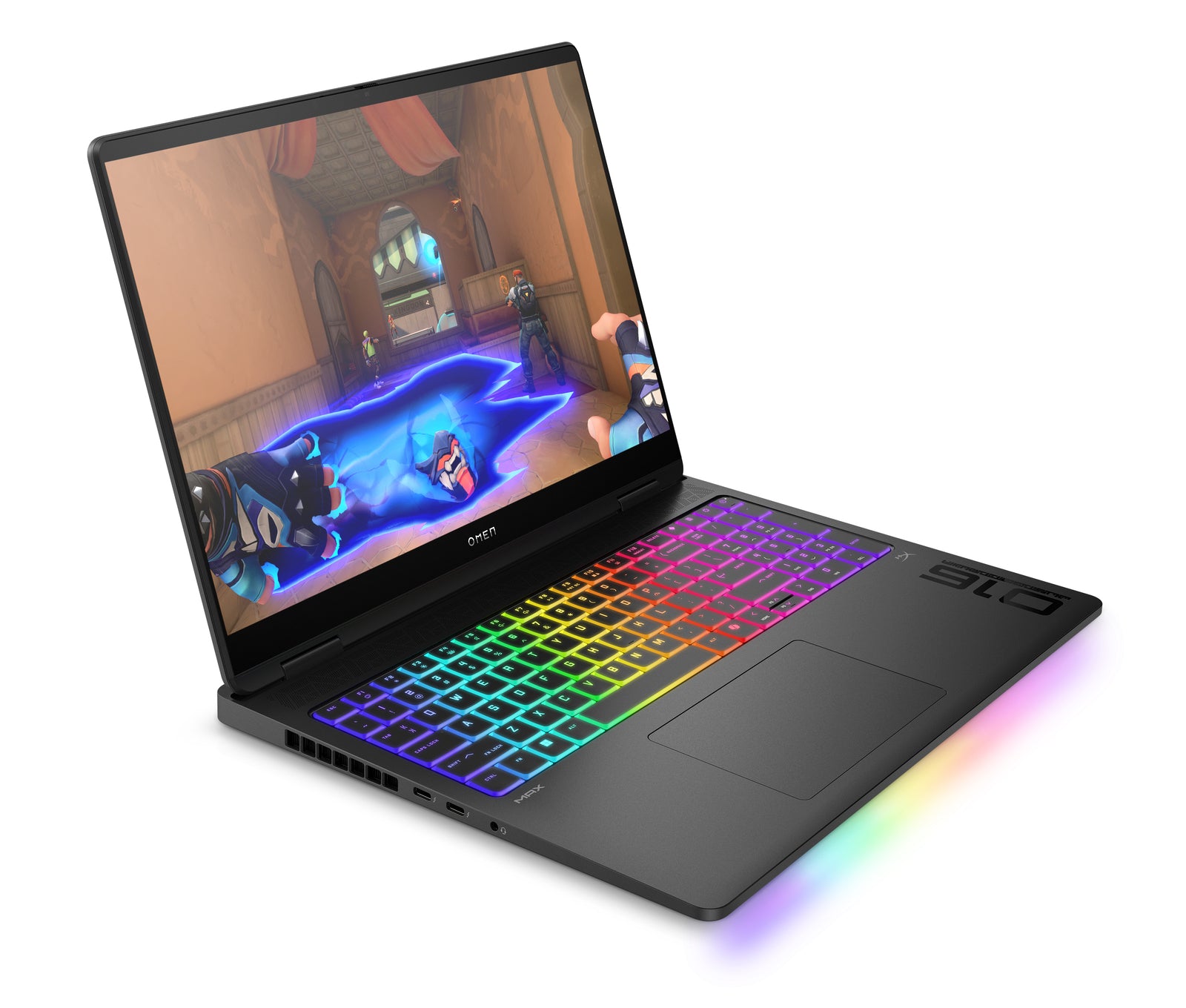

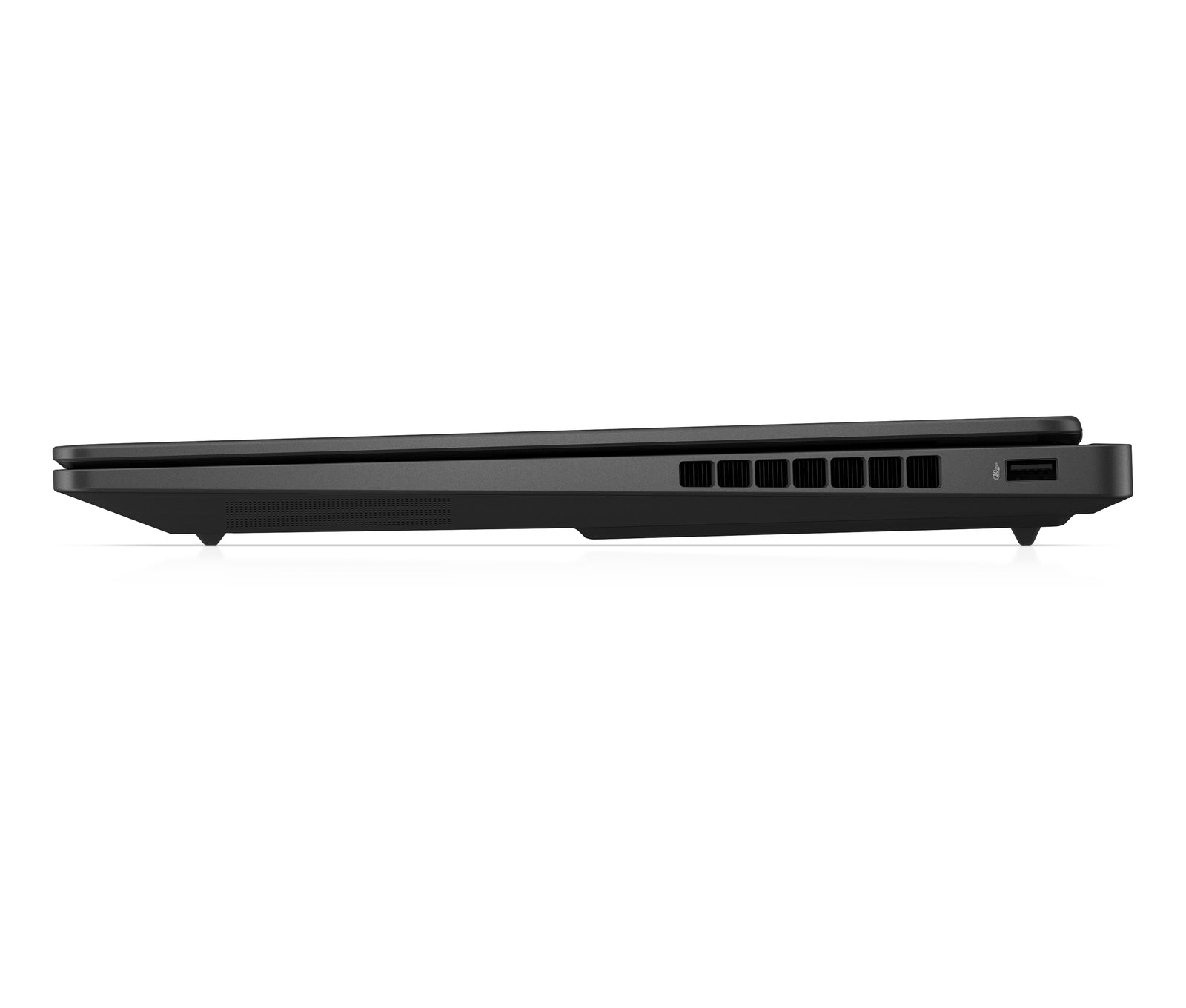

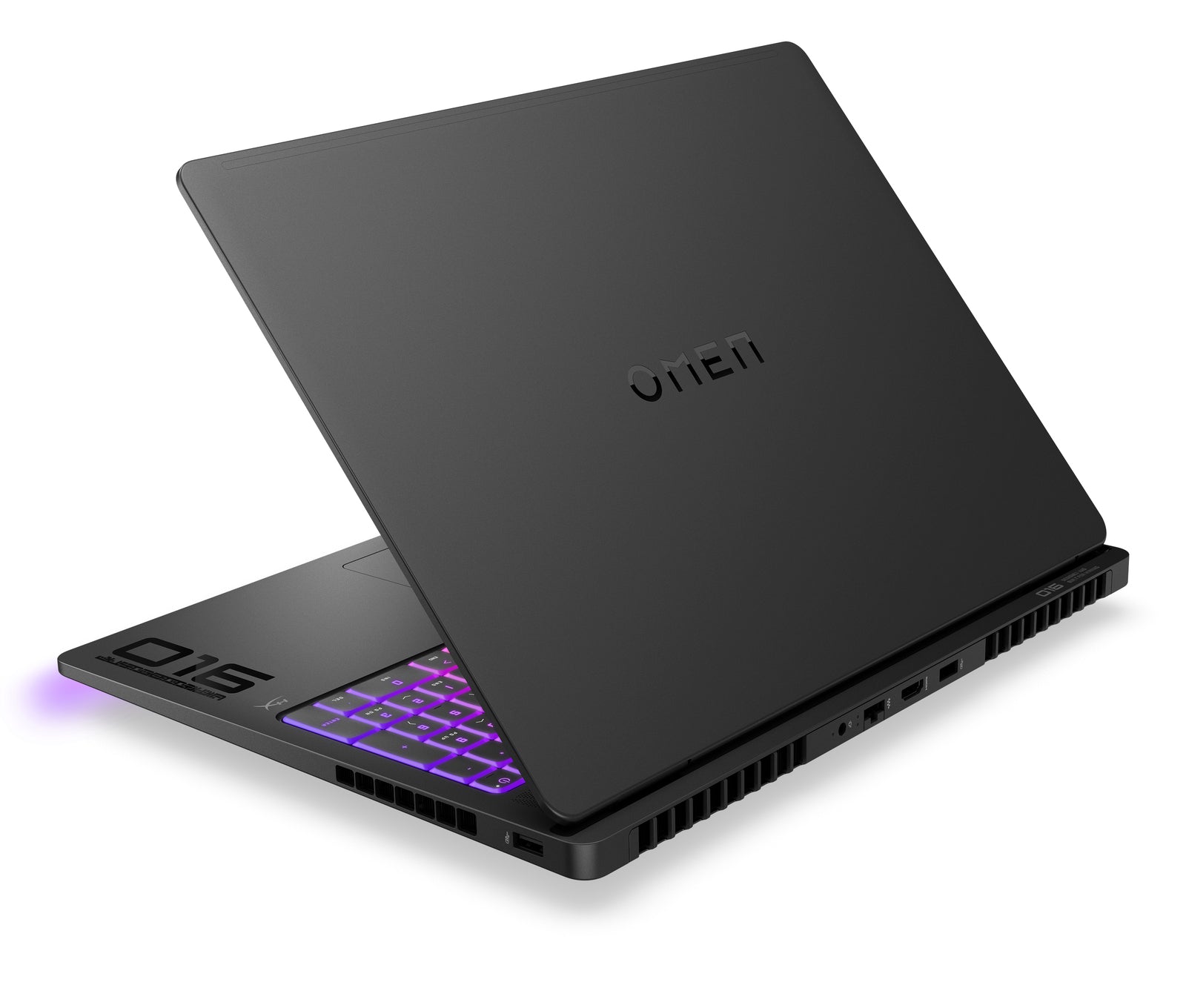

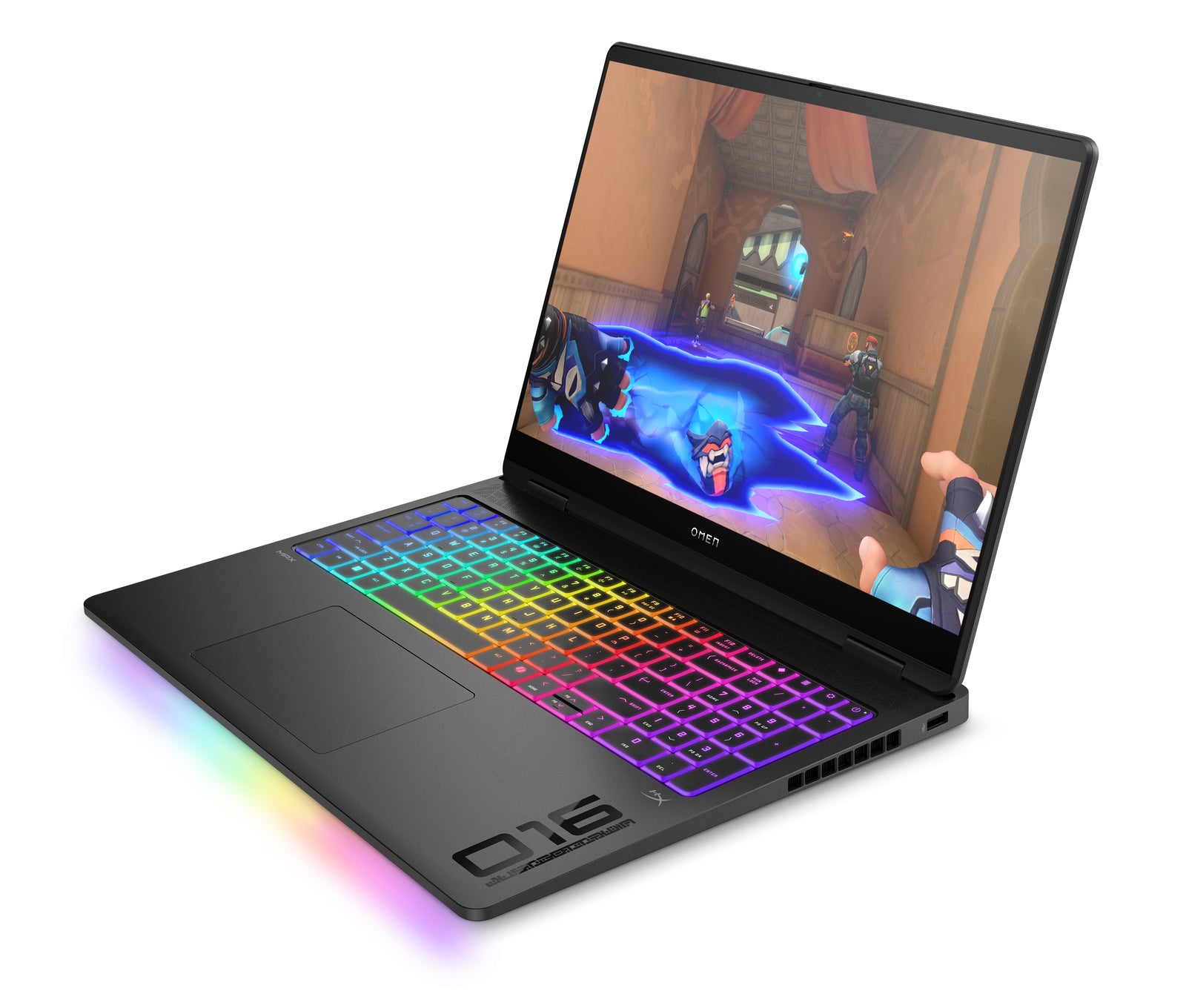

| Spec Sheet | OMEN MAX Gaming Laptop 16-ah0008na |
| Operating system | Windows 11 Home |
| Memory | 64 GB DDR5-5600 MT/s (2 x 32 GB) |
| Memory Note | Transfer rates up to 5600 MT/s. |
| Memory layout (slots & size) | 2 x 32 GB |
| Internal Storage | 2 TB PCIe® Gen4 NVMe™ Performance M.2 SSD |
| Cloud service | 100 GB Dropbox storage for 3 months[1] |
| Touchscreen | No |
| Display | 40.6 cm (16") WQXGA (2560 x 1600), OLED, 48-240 Hz, 0.2 ms, micro-edge, Low Blue Light, 400 nits (SDR), 500 nits (HDR), 100% DCI-P3 |
| Flicker-free | Yes[45] |
| Aspect ratio | 16:10 |
| Display contrast ratio (dynamic) | 1000000:1 |
| Display colors | 1.07 billion colors supported (in HDR mode) |
| Screen-to-body ratio | 88.81%[18] |
| Graphics (discrete) | NVIDIA® GeForce RTX™ 5090 Laptop GPU (24 GB GDDR7 dedicated) |
| Graphics Note | NVIDIA® Studio Certified |
| Ports | 2 Thunderbolt™ 4 (USB PD 3.1, DP™ 2.1); 2 USB Type-A 10Gbps; 1 HDMI 2.1; 1 RJ-45; 1 AC smart pin; 1 combo jack[19,42] |
| Wireless | Intel® Wi-Fi 7 BE200 (2x2) and Bluetooth® 5.4 wireless card[12,46] |
| Network interface | Integrated 10/100/1000/2500 GbE LAN |
| Expansion slots | 2 M.2 (SSD) |
| Wireless Note | HP Extended Range Wireless LAN |
| Audio | DTS:X® Ultra; Dual speakers; HP Audio Boost; HyperX |
| Keyboard | Full-size, per key RGB backlit, shadow black with numeric keypad and NKRO Anti-Ghosting |
| Pointing device | HP Imagepad |
| Input devices | IR thermal sensor |
| Weight | 2.68 kg |
| Package weight | 4.74 kg |
| Dimensions (W x D x H) | 35.65 x 26.9 x 2.29 cm (front); 35.65 x 26.9 x 2.48 cm (rear) |
| Package dimensions | 9.4 x 42.8 x 33.2 cm |
| Battery recharge time | Supports battery fast charge: approximately 50% in 30 minutes[5] |
| Battery type | 6-cell, 83 Wh Li-ion polymer[23] |
| Power supply type | 330 W AC power adapter |
| Software included | McAfee Online Protection (30-day); Adobe (1-month trial); PC Game Pass (3-month trial) |
| HP apps | HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub |
| Software - Productivity | 1 month trial for new Microsoft 365 customers[24] |
| Security management | Camera privacy shutter; Trusted Platform Module (Firmware TPM) support |
| Manufacturer Warranty | 1 year (1/1/0) limited warranty (parts and labor) |
| Product safety | View Safety Document |
| Camera | HP True Vision 1080p FHD IR camera with TNR and dual array digital microphones |
| Special features | NVIDIA® G-SYNC® support |
| Product color | Shadow black, light bar, RGB in keyboard frame |
| Product design | Sandblasted and paint finish |
| Light bar | Light bar |
| Processor family | Intel® Core™ Ultra 9 processor |
| Processor | Intel® Core™ Ultra 9 275HX (up to 5.4 GHz, 36 MB L3 cache, 24 cores, 24 threads)[6,7] |
| Chipset | Intel® HM870 |
| Neural Processing Unit | Intel® AI Boost (13 NPU TOPS) |
| Trademark information | Intel, Core, and Thunderbolt are trademarks of Intel Corp. NVIDIA, GeForce, and Studio are trademarks of NVIDIA Corp. Bluetooth is a trademark of its owner. All other trademarks are property of their respective owners. |
